ScaleBuster® 20 mm - ¾''
ISB DN20 | ION SB19 ET
Make:
Model:
Size:
Download:

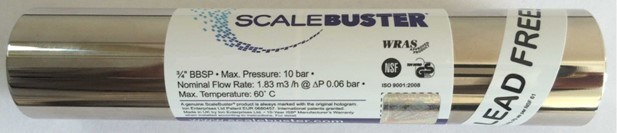

Scale Buster 3/4" BSP thread
WRAS approved
Rodin Part No: ISB DN20
Manufacturers Part No: ION SB19-ET
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 22 mm (¾") |
| Connection Size | ¾" BSP female |
| Length | 157 mm |
| Body Diameter | 32 mm |
| Weight | 0.7 Kg |
| Pressure | Max 10 bar |
| Nominal Flow Rate | 1.8 m3/h (0.5 l/s @ 2 m/s) |
| Pressure Loss | 0.0.06 bar at nominal flow rate |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation in Metal Pipe |
|
ScaleBuster Installation Non Metal Pipe |
Documentation
|
ScaleBuster Brochure |
