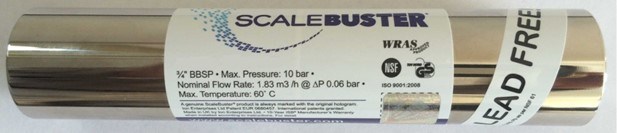

ScaleBuster® 25 mm - 1''
ISB DN25 | ION SB24 ET
Scale Buster 1" BSP thread
WRAS approved
Rodin Part No: ISB DN25
Manufacturers Part No: ION SB24-ET
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 25 mm (1") |
| Connection Size | 1" BSP female |
| Length | 298 mm |
| Body Diameter | 44 mm |
| Weight | 2.3 Kg |
| Pressure | Max 10 bar |
| Nominal Flow Rate | 3.53 m3/h (0.980 l/s @ 2 m/s) |
| Pressure Loss | 0.16 bar at nominal flow rate |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation in Metal Pipe |
|
ScaleBuster Installation Non Metal Pipe |
Documentation
|
ScaleBuster Brochure |
