Backwash filtration

Resideo Braukmann backwash filters -  from Rodin

Rodin are pleased to offer the Braukmann range of Resideo (formerly Honeywell) backwash filters that use a patented reverse rinsing system to ensure clean water is supplied at all times to an appliance or process.

A fine stainless steel mesh filters out dirt particles or foreign bodies which prevents pitting corrosion to the pipework and ensures performance of the system. Water filters which combine water filtration with pressure control are available along with accessories to enable automation if required.

Resideo

WRASThe F76S fine filter is WRAS approved and is supplied with a threaded connection. It is suitable for the removal of dirt particles from industrial and commercial applications.
The patented reverse rinse mechanism ensures that flow is available at all times, even during the backwash process

Features and Benefits:

  •  WRAS approved
  • Double spin technology for connection sizes from 1/2" to 1 1/4" enabling simultaneous cleaning in lower and upper filter areas
  • Filtered water supplied even during reverse rinsing
  • Patented reverse rinsing system - fast and thorough cleaning of the filter with small amount of water
  • Filter and filter bowl can be replaced
  • Available with a pressure gauge
  • Brass construction - PN16
  • Mesh sizes from 20 to 500 micron available with 50 micron mesh supplied as standard
  • Z11S automatic actuator can be fitted for timed backwash
  • DDS76 differential pressure switch can be fitted for fully automated operation

F76S Backwash Filter

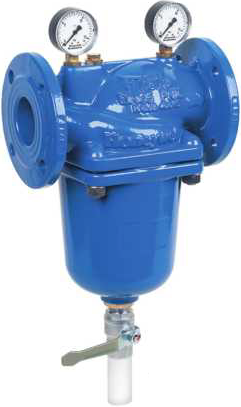

The F78TS flanged fine filter is supplied with a flanged connection.
It is suitable for the removal of dirt particles from industrial and commercial applications. The patented reverse rinse mechanism ensures that flow is available at all times, even during the backwash process.

Honeywell Flanged Backwash Filter

Features and Benefits:
  • WRAS approved
  • Available with a pressure gauge
  • Filtered water even during backwash cycle
  • Red bronze construction PN16
  • Polyamide coating provides a high level of corrosion protection
  • Mesh sizes from 20 to 500 micron available with 50 micron mesh supplied as standard
  • Z11AS automatic actuator can be fitted for timed backwash
  • DDS76 differential pressure switch can be fitted for fully automated operation

  • Potable water
  • Hot water systems
  • Process applications
  • EnviroTower systems

  • 80 Middlesex Street
  • Colchester General Hospital
  • Hanover Square Estate
  • Sutton School
  • Montpellier Primary School
  • Harella House
  • Greencoat Place
  • Aldridge Mill

Backwash Filter installation instructions

Backwash Filters should be installed in accordance with the manufacturer's installation instructions full details of which can be found from the following links:

F76S Threaded Backwash Filter
F78TS Flanged Backwash Filter
Backwash Filter warranty information

12 months manufacturer's warranty from delivery.
We recommend an annual inspection and service is carried out by an appropriately qualified contractor.

Please contact the sales office if an extended warranty is required.

BIM Files are not yet available for this product range.
