Water is a precious resource. We should always use it wisely because it's not as abundant as you might think.

ION ScaleBuster® - decalcification and corrosion protection

ION ScaleBuster® - ISB® technology is a hydrodynamic process with electro-static and galvanic action

ION ScaleBuster® is a patented physical water conditioner designed to inhibit scale development and remove scale already within a system, together with providing corrosion protection.

The  WRAS approved ION ScaleBuster® unit has been installed successfully in the UK for over 25 years and has been specified by many of the UK’s leading design consultancies.

The ION ScaleBuster® unit conditions hard water (preventing lime-scale build up) by combining a number of actions that culminate in the scientifically proven method of zinc release in the form of zinc ions. It does not contain magnets or involves any sort of magnetic process.

ION ScaleBuster® - scale inhibiting and removal

ION ScaleBuster® is designed to cause precipitation of calcium carbonate into the water stream. This is as a result of the breakdown of the bicarbonate into carbon dioxide, water, and carbonate due to the effects created within the ION ScaleBuster® itself. The particles which are formed in the water stream act as nuclei for the formation of further scale when the water is heated. In this way, scale deposition upon heating surfaces is minimised.
When a salt is precipitated from solution it results in a relatively less saturated solution remaining. The less saturated water is then able to dissolve and break down existing scale from pipe surfaces enabling it to be flushed from the system.

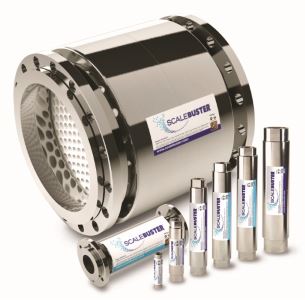

ScaleBuster Group

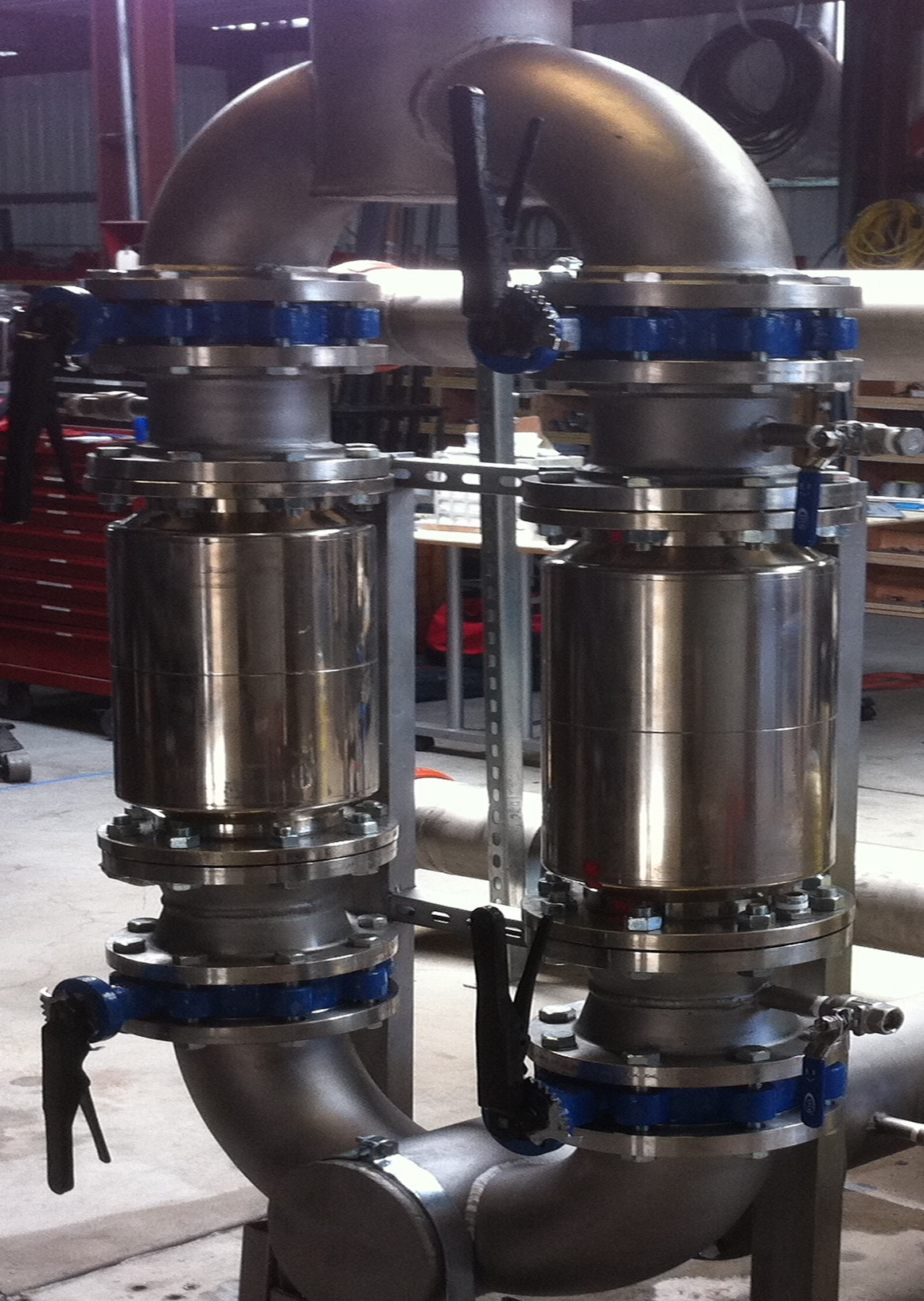

Twin ScaleBuster

ION ScaleBuster® - corrosion protection

The zinc anode within ION ScaleBuster® allows microscopic amounts of zinc ions to be released and to permeate the water stream. This not only enhances the nucleisation effects but also provides protection from corrosion to the pipework itself.
Corrosion is caused by aggressive radicals in water such as chlorides and sulphates which, in the presence of oxygen, attack metals to varying degrees. Since zinc is more reactive than iron and copper, the zinc is more likely to be attacked and thus the system is protected.
Further details on the ability of the ION ScaleBuster® to inhibit and remove scale and provide corrosion protection can be found within our brochure which can be requested via the enquiry form on the home page.

ION ScaleBuster® - benefits and implications
  • Can be installed before the cold water storage tank saving cost by reducing the size of unit required
  • Conditioning effect is not lost over time as scale particles are bonded to the zinc nuclei
  • Can be installed before or after the booster set. Installation before the booster set protects the pumps as the turbulence does not reduce the conditioning effect
  • No control panel is required and therefore PCB malfunction cannot occur
  • No power supply is required resulting in reduced installation and running costs
  • Standard sizes from 15mm to 200mm (70 l/s) are available with larger sizes available on request
  • Life expectancy is in excess 20 years during which time no maintenance or replacement parts are required
  • ScaleBuster® is WRAS approved
  • ScaleBuster® has been designed and is manufactured in a UK factory with ISO 9001 certification
  • ScaleBuster® prevents and removes limescale in hard water areas but also prevents corrosion in soft water areaScaleBuster® is compact and can be fitted in a new or retrofit situation
  • ScaleBuster® reduces the habitat where bacteria grow and hence reduces the risk of legionella contamination
  • ScaleBuster® coagulates suspended particles making the particles easier to remove by filtration

WRAS

Flanged ScaleBuster

ION ScaleBuster® hologram - the sign of a genuine productScaleBuster Hologram

Only genuine ION ScaleBuster® units feature this special hologram on their label.
Make sure you have the genuine article installed to provide proper protection to your systems and equipment

Brochure
Ion ScaleBuster Brochure
UK Case Studies

ScaleBuster® has been used in commercial applications within the UK for over 25 years as well in Europe and the Far East. We are pleased to share a couple of case studies from customers who have used the product over considerable periods of time:

Kensington & Chelsea TMO ION ScaleBuster Case Study
Brighton University ION ScaleBuster Case Study
James Hornsby School ION ScaleBuster Case Study
International Case Studies

ION ScaleBuster® has been used not just in the  UK but in Europe and worldwide.

Beer Manufacturing ScaleBuster Case Study
Cheese Manufacturing ScaleBuster Case Study
Chocolate Manufacturing ScaleBuster Case Study

  • Potable water
  • Process applications – food & beverage industry - including brewing, cheese and chocolate manufacturing
  • Cooling towers - as part of the Envirotower system

 ION ScaleBuster®  has been used by leading companies around the world including:

  • Hilton
  • Sheraton
  • Commerzbank
  • Hyundai Korea
  • NASA
  • Ministry of Defence
  • Wood Wharf - PN40 application

A more extensive list can be found at the link below:
ION ScaleBuster International Clients

ION ScaleBuster® Installation instructions

ScaleBuster® should be installed in accordance with the manufacturer's installation instructions full details of which can be found from the following link:
ION ScaleBuster Installation Instructions

ION ScaleBuster® warranty information

The warranty information in respect of ION ScaleBuster® can be found from the following link:
ION ScaleBuster Warranty Information

We are pleased to confirm that the entire ION ScaleBuster product range is now available in Building Information Modelling (BIM) file format. The use of BIM will provide significant benefits during the design, construction, and ultimately management of a wide range of building projects.

To download the BIM files please click on the link below to select the model required or contact the office and we will be happy to e-mail them to you:

ION ScaleBuster BIM files

How does ION ScaleBuster® actually work?

ION ScaleBuster works effectively and efficiently – without chemicals, power, or moving parts. The hydrodynamic conditions present during operation force the precipitation of crystals in the water. This process prevents the formation of scale and corrosion and allows the water to absorb scale already attached to internal piping and equipment surfaces.
