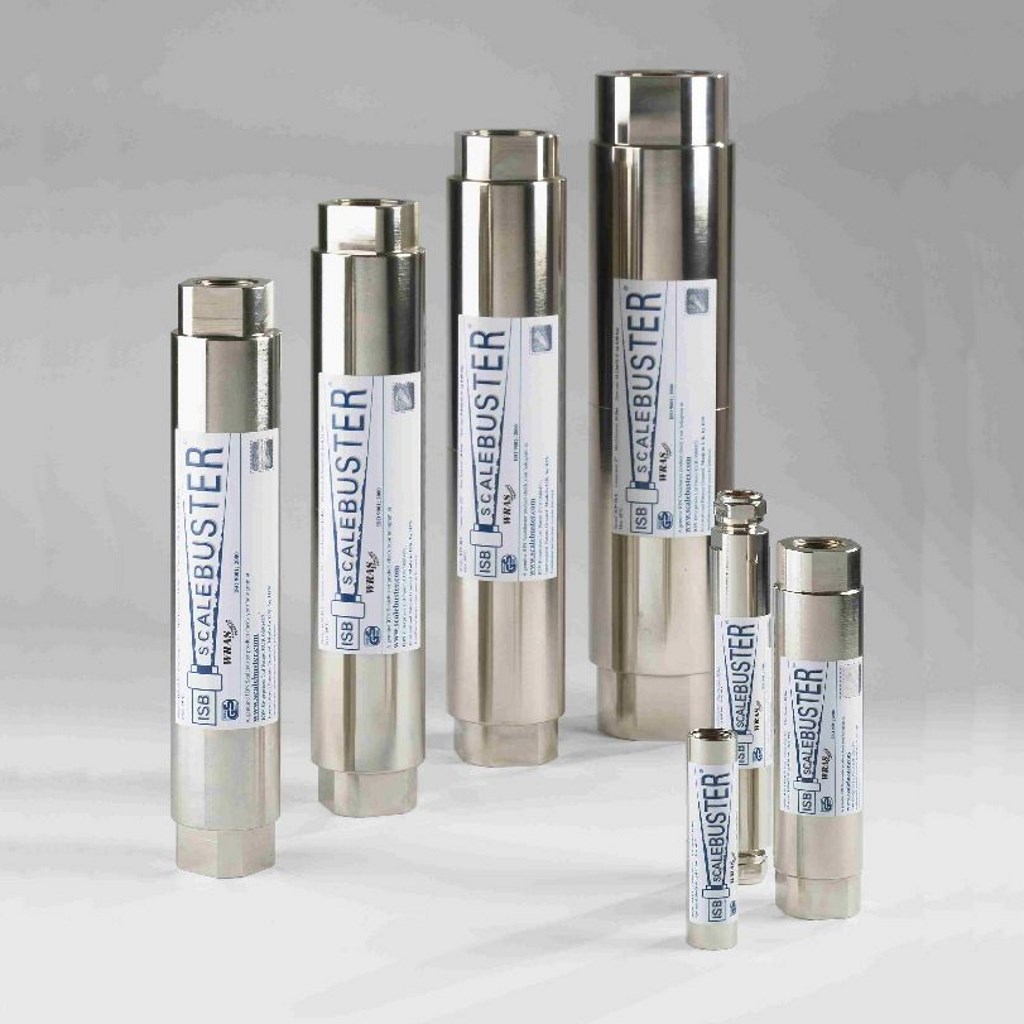

ScaleBuster® 20 mm - ¾''
ISB C20 | ION SB20 ET
Make:
Model:
Size:
Download:
Scale Buster ¾" female BSP thread
WRAS approved
Rodin Part No: ISB C20
Manufacturers Part No: ION SB20-ET
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 20 mm (¾") |
| Connection Size | ¾" BSP female |
| Length | 260 mm |
| Body Diameter | 44 mm |
| Weight | 2.2 Kg |
| Pressure | Max 16 bar |
| Nominal Flow Rate | 1.872 m3/h (0.52 l/s @ 2 m/s) |
| Pressure Loss | 0.11 bar @ 0.52 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation in Metal Pipe |
|
ScaleBuster Installation Non Metal Pipe |
Documentation
|
ScaleBuster Brochure |
