ScaleBuster® 15 mm - ½''
ISB D15 | ION 10 E
Make:
Model:
Size:
Download:

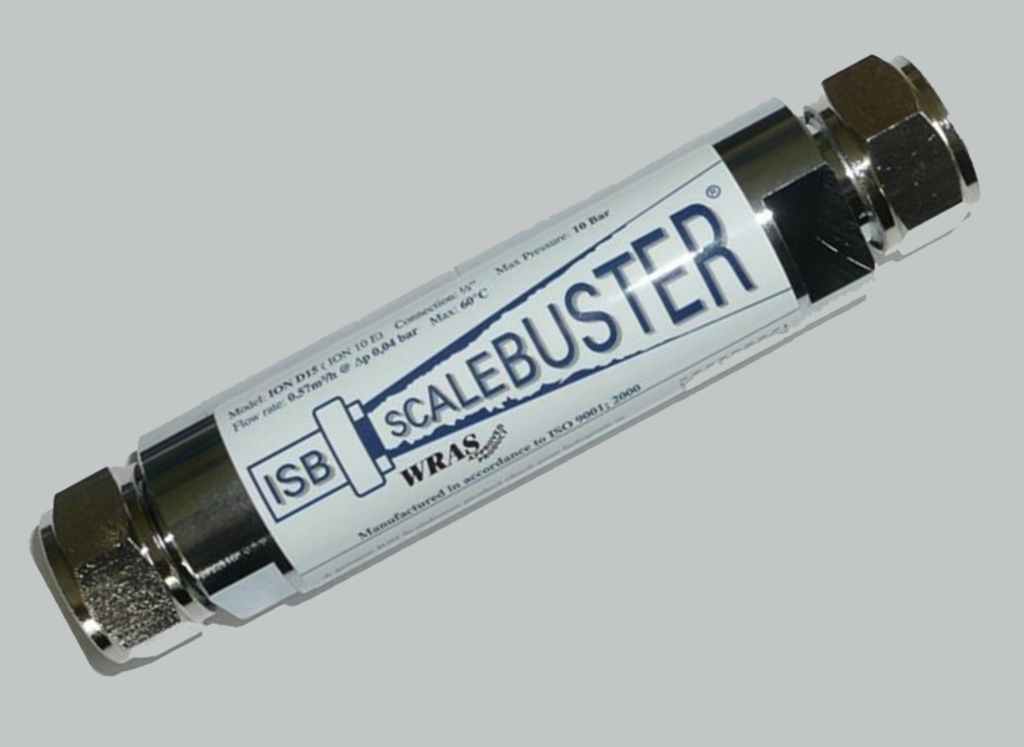

ScaleBuster - connection with 15mm compression fittings
WRAS approved
Rodin Part No: ISB D15
Manufacturers Part No: ISB D15 (ION 10 E)
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 15 mm (½”) |
| Connection Size | 15mm (½”) Compression |
| Length | 120 mm |
| Body Diameter | 30 mm |
| Weight | 0.45 Kg |
| Pressure | Max 10 bar |
| Nominal Flow Rate | 0.57 m3/h (0.26 l/s @ 2 m/s) |
| Pressure Loss | 0.04 bar max. Flow rate |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation in Metal Pipe |
|
ScaleBuster Installation Non Metal Pipe |
Documentation
|
ScaleBuster Brochure |
