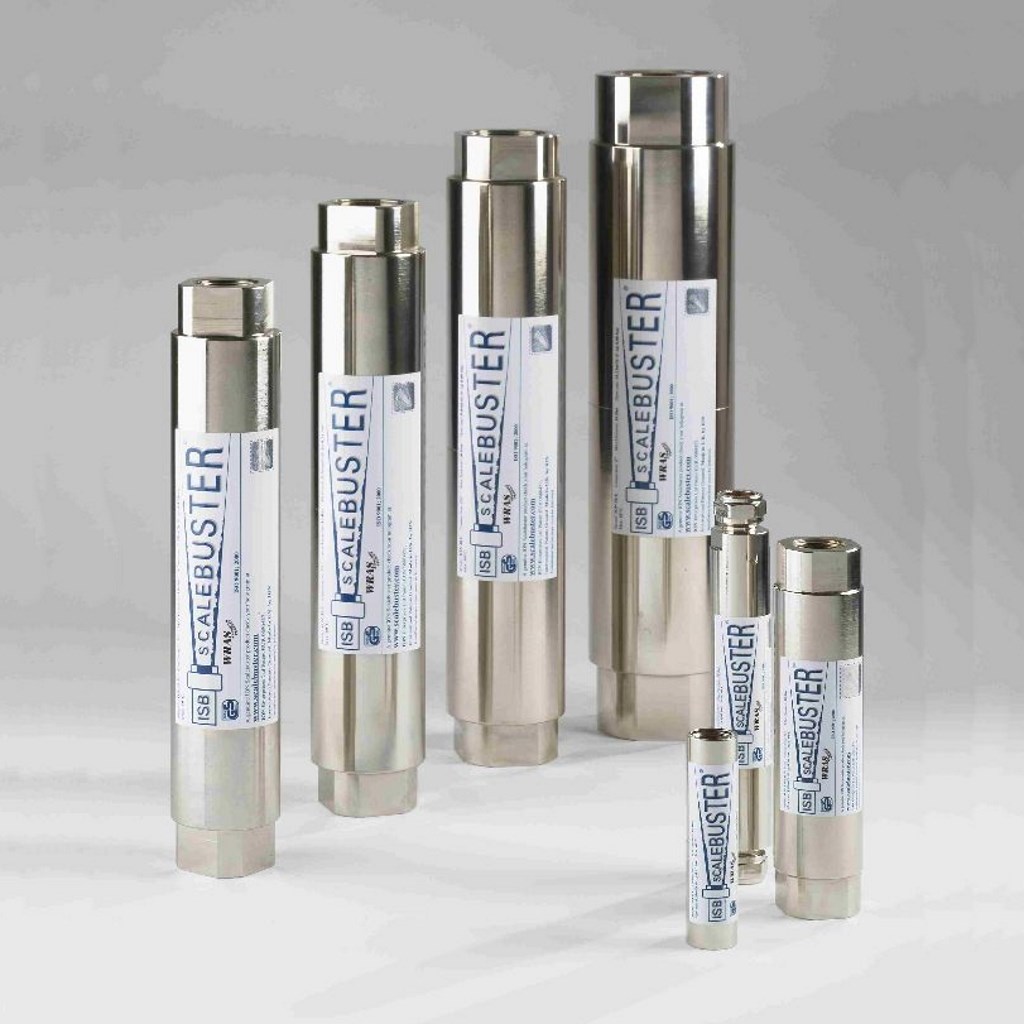

ScaleBuster® 32 mm - 1¼''
ISB C32 | ION SB32 ET
Scale Buster 1¼" female BSP thread
WRAS approved
Rodin Part No: ISB C32
Manufacturers Part No: ION SB32-ET
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 32 mm (1¼”) |
| Connection Size | 1¼” BSP female |
| Length | 330 mm |
| Body Diameter | 65 mm |
| Weight | 4.2 Kg |
| Pressure | Max 16 bar |
| Nominal Flow Rate | 5.76 m3/h (1.6 l/s @ 2 m/s) |
| Pressure Loss | 0.11 bar @ 1.6 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation in Metal Pipe |
|
ScaleBuster Installation Non Metal Pipe |
Documentation
|
ScaleBuster Brochure |
