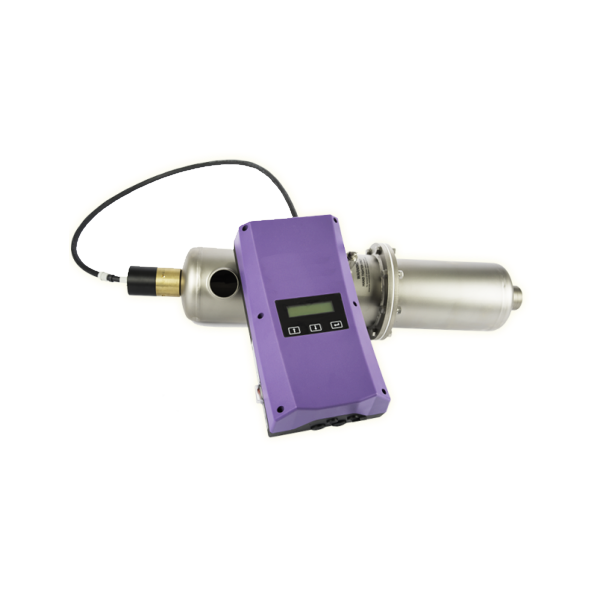

UV Disinfection System, WRAS approved
Validated to BS EN14897 - supplied with a validation certificate.

  • Lower cost due to high energy‐efficiency compared to conventional UV systems
  • Optimised reactor design with matched power supply
  • User‐friendly interface
  • Low maintenance requirements
  • Constant monitoring of lamp status
Options for UV systems
  • UV sensor
  • Temperature sensor with dump valve
  • Temperature safety sensor

Technical Information V090 - V140

Specifications

Type

V090

V100

V110

V120

V130

V140

UV chamber

Material

316L / 1.4404 Stainless steel

In-/Outlet Connections

0.5” BSP-T

1” BSP-T

1” BSP-T

1” BSP-T

1.5” BSP-T

1.5” BSP-T

Pressure drop

< 0.1 bar

Max. Pressure

16 bar at 25°C

Mounting orientation

Horizontal/ Vertical

Horizontal/ Vertical

Horizontal/ Vertical

Horizontal/ Vertical

Horizontal/ Vertical

Horizontal/ Vertical

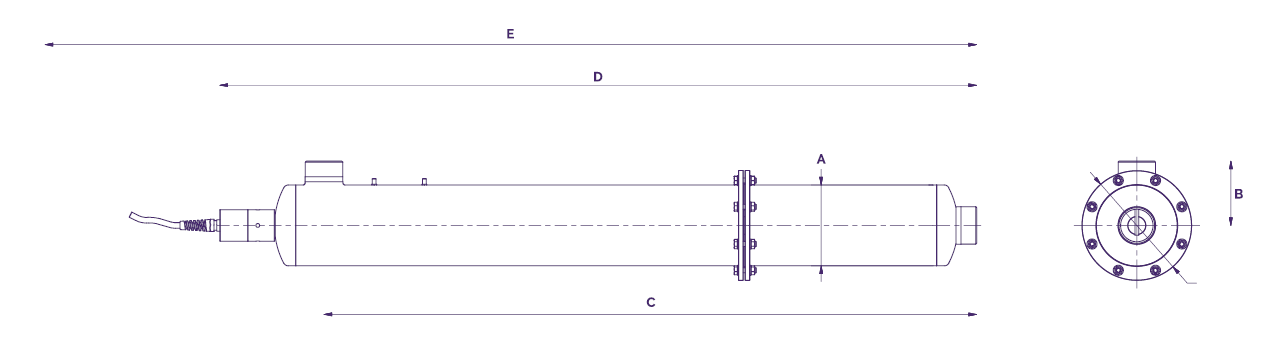

Diameter - A (mm)

60

60

60

89

129

129

Height - B (mm)

63

63

63

77

103

103

Installation dimension - C (mm)

390

554

554

548

547

547

Length - D (mm)

522

690

690

698

708

708

Required working space - E (mm)

900

1244

1244

1255

1275

1275

Weight (KG)

3.0

3.7

3.7

4.9

6.8

6.8

UV Dimensions

UV-C lamp

Lamp type

18W

Regular

25W

Regular

50W

Regular

50W

Regular

50W

Regular

60W

Long Life

Preferred water temperature (°C)

5 °C - 30°C

Total UV-C output (Watt)

5.7

7

15

15

15

19

Lamp  lifespan  (hours)

8000

16000

Number  of lamps

1

1

1

1

1

1

Control Unit

Material

Aluminium and ABS

Dimensions (lxbxh)

300x160x110 mm

Weight (KG)

2.1

Control features

Lamp status, lamp hours, system running time, volt free alarm contacts

Sensors (optional)

UV sensor (UVS), Temperature safety sensor (TSS). Temperature Safety Dumpvalue (TSD)

Operating Voltage

230 VAC, 50/60 Hz

Electrical connection

6A C-char./4A D-char.

Protection rating

IP55

Preferred ambient temperature (°C)

5°C - 35°C

Total Power Consumption (W)

21

30

60

60

60

70

Power Consumption

In Wh/m³ at doses 300 J/m²

24.5

30

31.6

19.4

8.2

8.2

In Wh/m³ at doses 400 J/m²

37.5

37.5

40

24

16,7

10.9

Approvals

Complies with

Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility Directive (EMC)

2014/30/EU, Machinery Directive 2014/42/EC

Validated according to

EN 14897:2006, WRAS Approved, Kiwa ATA





Technical Information V150 - V220

Specifications

Type

V150

V160

V170

V180

V190

V200

V220

UV chamber

Material

316L / 1.4404 Stainless steel

In-/Outlet Connections

2” BSP-T

2” BSP-T

2” BSP-T

2.5” BSP-T

3” BSP-T

DN100 PN16

DN100 PN16

Pressure drop

< 0.1 bar

Max. Pressure

10 bar at 25°C

Mounting orientation

Horizontal/
Vertical
Horizontal/
Vertical
Horizontal
Horizontal
Horizontal
Horizontal/
Vertical
Horizontal

Diameter - A (mm)

129

129

89

129

129

204

204

Height - B (mm)

103

103

82

110

120

159

159

Installation dimension - C (mm)

1041

1041

1340

1336

1604

1131

1431

Length - D (mm)

1207

1207

1499

1512

1790

1321

1621

Required working space - E (mm)

2270

2270

2855

2880

3440

2640

3100

Weight (KG)

10.8

10.8

9.7

13.2

15.7

37

41.2

 UV Dimensions

UV-C lamp

Lamptype

80W Regular

120W Long  Life

205W Long  Life

205W Long  Life

325W Long  Life

120W Long  Life

205W Long  Life

Preferred water temperature (°C)

5 °C - 30°C

Total UV-C output (Watt)

27

38

58

58

116

114

174

Lamp lifespan  (hours)

8000

16000

Number of lamps

1

1

1

1

1

3

3

Control Unit

Material

Aluminium and ABS

Coated steel

Dimensions (lxbxh)

300x160x110 mm 2.1

600x600x250 mm

Weight (KG)

2.1

18

Control features

Lamp status, lamp hours, system running time, volt free alarm contacts

Sensors (optional)

UV sensor (UVS), Temperatuur safety sensor (TSS). Temperature Safety Dumpvalue (TSD)

Operating Voltage

230 VAC, 50/60 Hz

Electrical connection

6A C-char./4A D-char.

16 A C-char./10A D-char.

Protection rating

IP55

IP54

Preferred ambient temperature

(°C) Total Power Consumption (W)

5°C - 35°C

Total Power Consumption (W)

90

140

30

265

435

690

690

Power Consumption

In Wh/m³ at doses 300 J/m²

7.6

7.9

9

6.1

6.5

4.6

6.1

In Wh/m³ at doses 400 J/m²

10.1

10.5

12

8.1

8.7

6.1

6.9

Approvals

Complies with

Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility Directive (EMC) 2014/30/EU,

Machinery Directive 2014/42/EC

Validated according to

EN-EN 14897:2006, WRAS Approved, Kiwa ATA
