Validated UV Systems

Ref: D100 D150 D210 D300 D390 D440
I'm happy for The Rodin Group Ltd to let me know about news and offers that may be of interest to me in the future. Don't worry though, we promise we will never pass your details to 3rd parties.

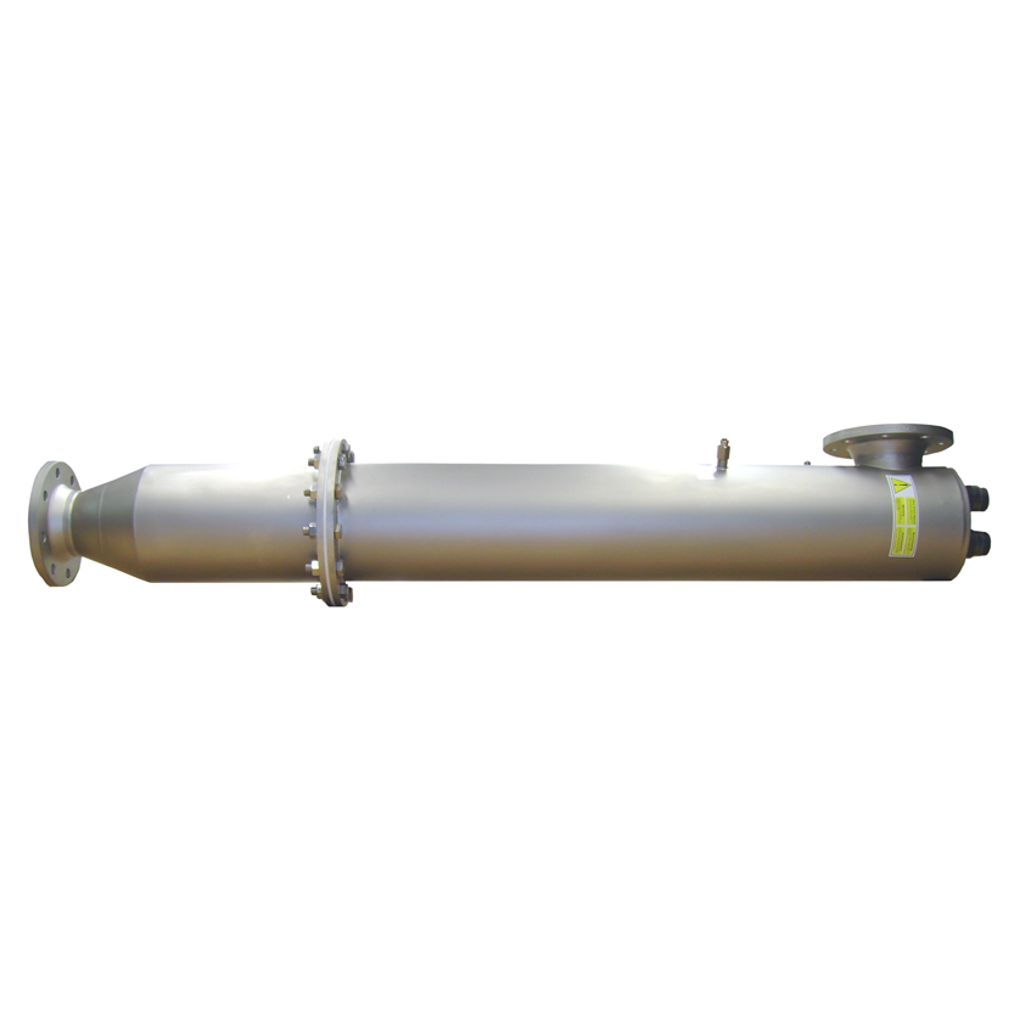

UV Disinfection System, WRAS approved (D100 & D150 only)
Validated to BS EN14897 - supplied with a validation certificate.

  • Lower cost due to high energy‐efficiency compared to conventional UV systems
  • Optimised reactor design with matched power supply
  • User‐friendly interface
  • Low maintenance requirements
  • Constant monitoring of lamp status
Options for UV systems
  • UV sensor
  • Temperature sensor with dump valve
  • Temperature safety sensor

Technical Information

Specifications

Type

D100

D150

D210 D300

D390

D440

UV chamber

Material

316L / 1.4404 Stainless steel

In-/Outlet Connections

DN150, PN16

DN150, PN16

DN200, PN16

DN250, PN16

DN250, PN16

DN250, PN16

Pressure drop

< 0.2 bar

Max. Pressure

10 bar at 25°C

Mounting orientation

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

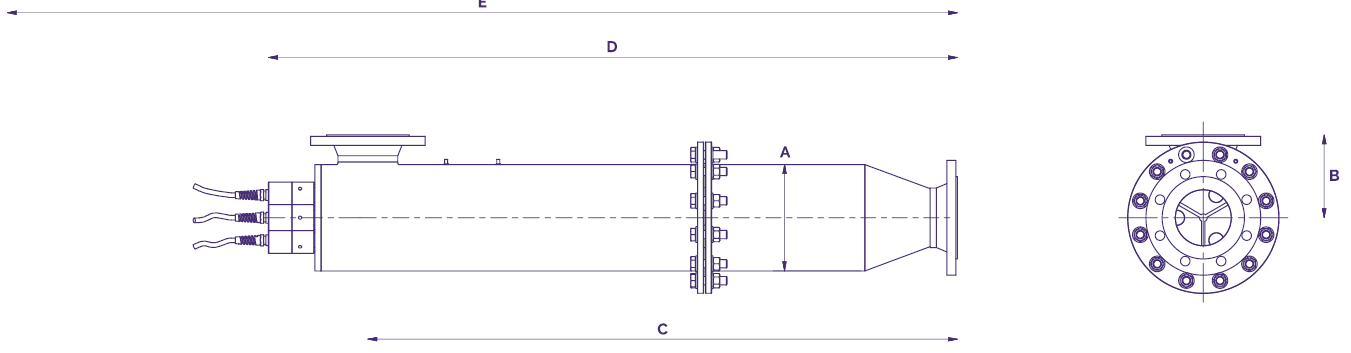

Diameter - A (mm)

254

254

254

354 354 354

Height - B (mm)

187

187 322 352 352 354

Installation dimension - C (mm)

1550

1814

1588 1753 1706 1758

Length - D (mm)

1770 2034 1903 2054 2056 2059

Required working space - E (mm)

3400 3920 3800 4100 3970 3960

Weight (KG)

59 62 74 104 109 114
UV Dimensions

UV-C lamp

Lamp type

High-efficiency amalgam

Preferred water temperature (°C)

5 °C - 30°C

Total UV-C output (Watt)

232 345 575 690 920 1044

Lamp  lifespan  (hours)

16000

Number  of lamps

4 3 5 6 8 9

Control Unit

Material

Coated steel

Dimensions (lxbxh)

800x600x210 mm 1000x1000x 210 mm

Dimensions (lxbxh)

300x160x110 mm

Weight (KG)

2.1

Control features

Lamp status, lamp hours, system running time, volt free alarm contacts

Sensors (optional)

UV sensor (UVS), Temperature safety sensor (TSS). Temperature Safety Dumpvalue (TSD)

Operating Voltage

230 VAC, 50/60 Hz

Electrical connection

6A C-char./4A D-char.

Protection rating

IP54

Preferred ambient temperature (°C)

5°C - 35°C

Total Power Consumption (W)

915 1085 1810 2170 2890 3610

Approvals

Complies with

Low Voltage Directive (LVD) 2014/35/EU, Electromagnetic Compatibility Directive (EMC)

2014/30/EU, Machinery Directive 2014/42/EC

Validated according to

EN 14897:2006, WRAS Approved, Kiwa ATA
