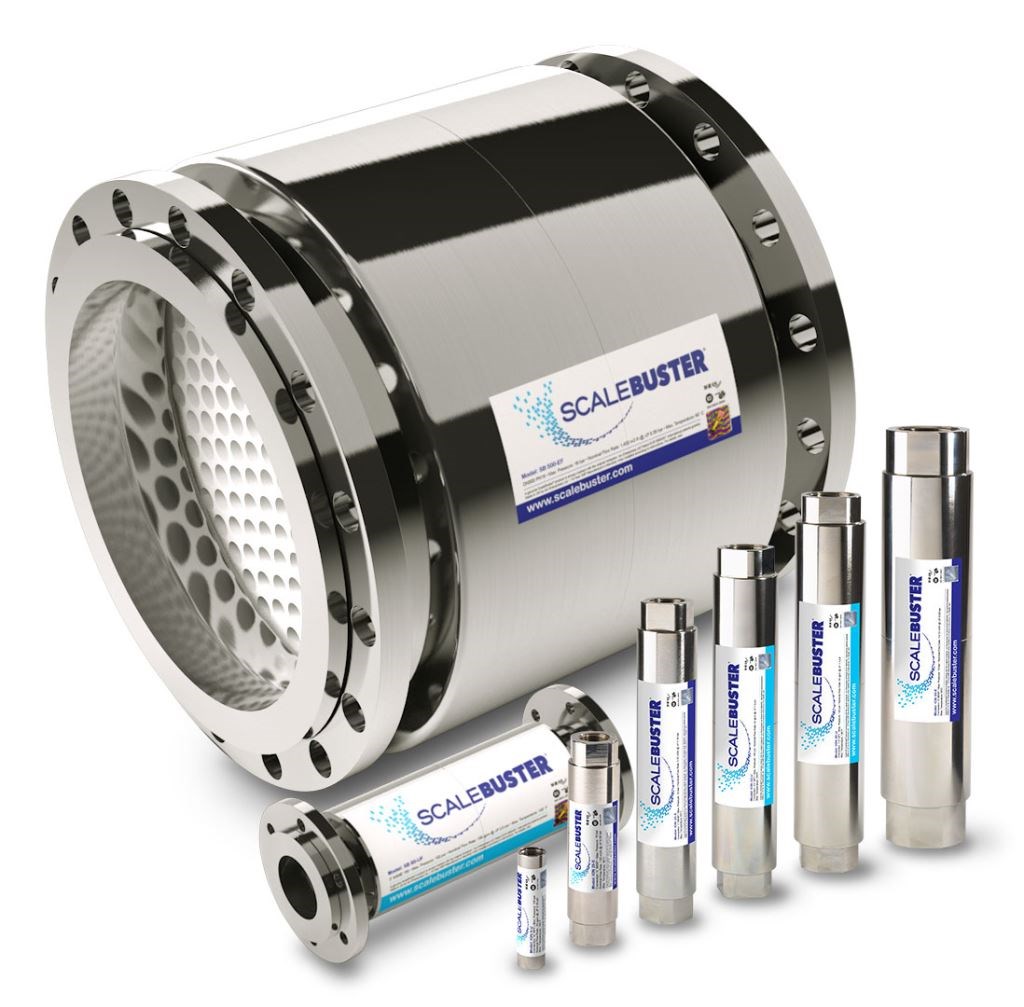

ScaleBuster® 75 mm - 3''
ISB SF75 | ION SB80-EF-16
Scale Buster 3" flanged
WRAS approved
Rodin Part No: ISB SF75
Manufacturers Part No: ION SB80-EF-16
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 75 mm (3”) |
| Connection Size | 3" Flange |
| Length | 445 mm |
| Body Diameter | 200 mm |
| Weight | 27 Kg |
| Pressure | Max 16 bar (40 bar on request) |
| Nominal Flow Rate | 33.3 m3/h (9.25 l/s @ 2 m/s) |
| Pressure Loss | 0.05 bar @ 12.50 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation Flanged Model |
Documentation
|
ScaleBuster Brochure |
