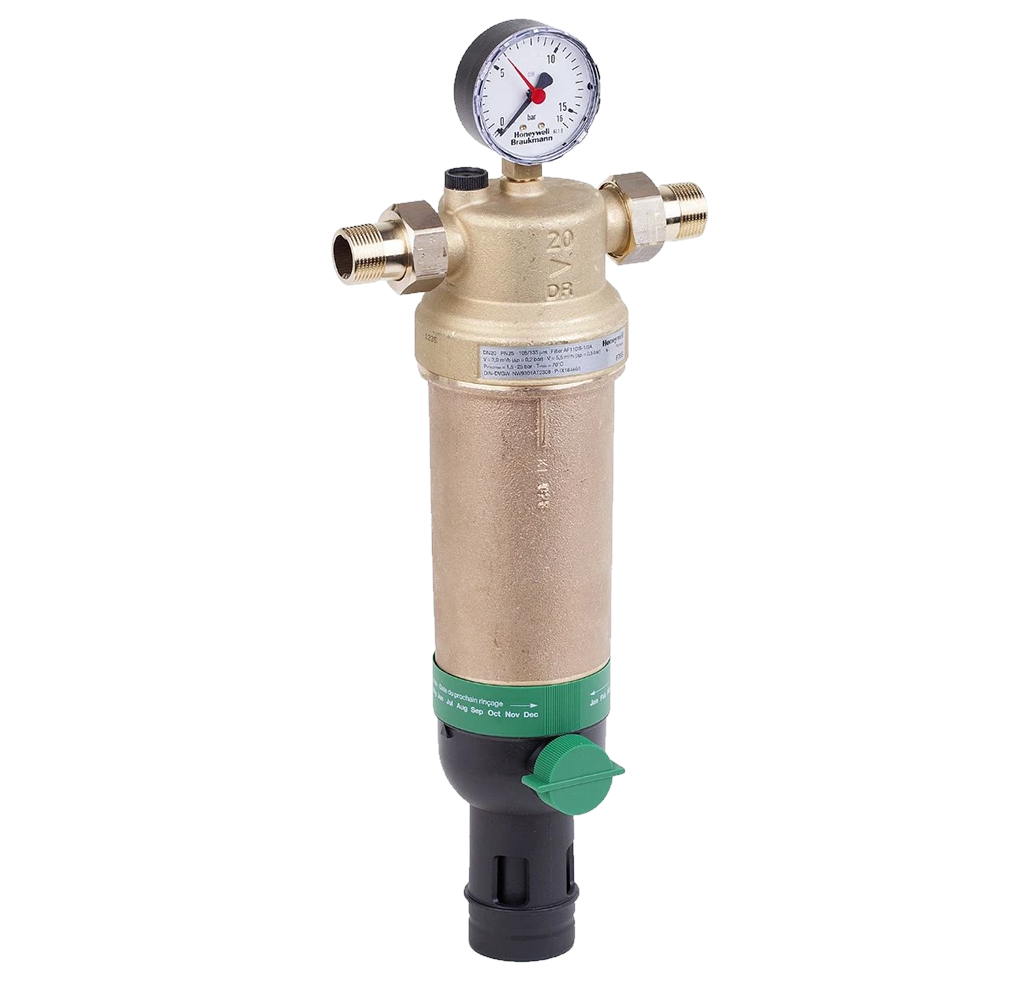

Backwash Filtration Systems

Application

F76S reverse rinsing filters ensure a continuous supply of filtered water. The fine filter prevents the ingress of foreign bodies, for example, rust particles, strands of hemp and grains of sand and thus reduces the probability of corrosion.
The appliances correspond to the requirements of current DIN/DVGW/WRAS specifications.

Approvals

• DVGW approval for all filters with 100 μm mesh sizes
• SVGW approval for all filters with 100 μm mesh sizes
• WRAS approval for all filters with 100 & 50 μm mesh sizes

Special Features

• Double Spin Technology for connection sizes 1/2" to 11/4"
  • Cartridge with external rotor enabling simultaneous cleaning in lower and upper filter areas
  • Visual function check possible
• Filtered water supplied even during reverse rinsing
• Patented reverse rinsing system - fast and thorough cleaning of the filter with a small amount of water
• Memory ring indicates when the next manual reverse rinsing is due
• Automatic reverse rinsing actuator with bayonet connector can be retrofitted
• Large filter surface
• Shock resistant clear synthetic material filter bowl enables easy checking of filter contamination
• Bronze filter bowl for WRAS-approved applications
• Filter and complete filter bowl are replaceable
• Standardised discharge connection
